M 20.10.305 II
image M 20.10.305 II

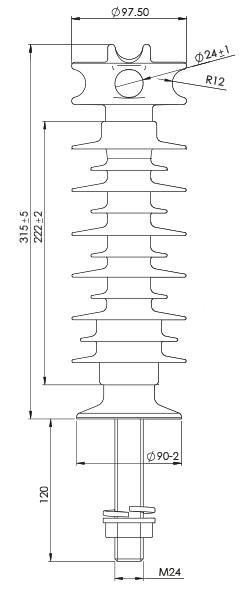

M 20.8.315 III
image M 20.8.315 III

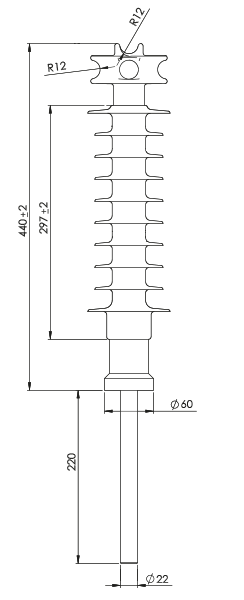

M 24.11.440 III
image M 24.11.440 III

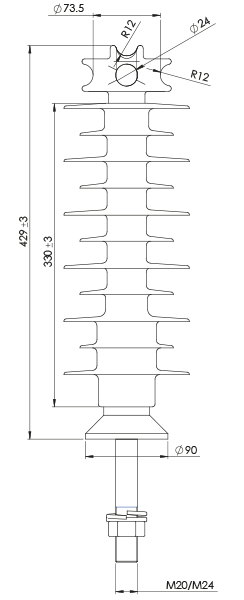

M 35.12,5.435 III
image M 35.12,5.435 III
Catalog Drawing No. Type Section Length Creepage Distance Un Power-Frequency Whitstand Voltage Wet Power-Frequency Whitstand Voltage Dry Lighting Impulse Whitstand Voltage SML Minimum Failing Load Bending Minimum Failing Load Torsion Approx. Weight Standards
- - mm mm kV kV kV kV kN kN kN.m kg IEC, BDS, EN
00321 M 20.10.305 II 305 530 24 65 75 135 - 10 - 2.200 61109 61952
00363 M 20.8.315 III 315 622 24 80 95 160 - 8 - 2.340 61109 61952
00330 M 24.11. 440 III 440 650 24 125 - 190 - 11 - 2.800 61109 61952
320 M 35.12,5 435 III 435 1010 35 125 130 250 - 12.5 - - 61109 61952
