Products
| BG
| Catalog Drawing No. | Type | Section Length | Creepage Distance | Un | Power-Frequency Whitstand Voltage Wet | Power-Frequency Whitstand Voltage Dry | Lighting Impulse Whitstand Voltage | SML | Minimum Failing Load Bending | Minimum Failing Load Torsion | Approx. Weight | Standards |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | mm | mm | kV | kV | kV | kV | kN | kN | kN.m | kg | IEC, BDS, EN |

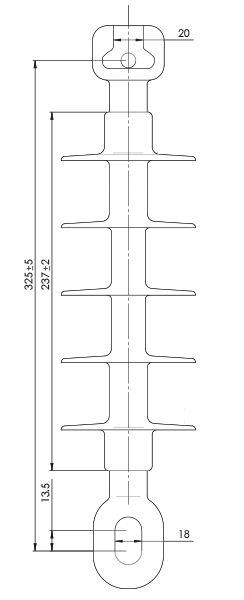

| 197 | F 20.70.325 II | 325 | 520 | 24 | 80 | 100 | 150 | 70 | - | - | 0.930 | IEC466, IEC 120, IEC 466-1, IEC 372 |

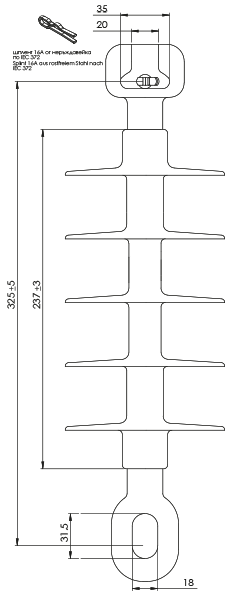

| 0151 | F 20.70.325 III | 325 | 618 | 24 | 95 | 115 | 190 | 70 | - | - | 1.000 | IEC466-1, IEC 120, IEC 372 |

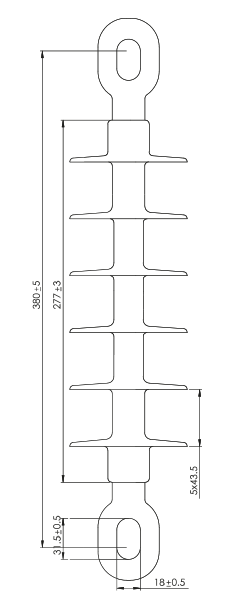

| 0161 | F 20.70.380 III | 380 | 612 | 24 | 110 | 120 | 195 | 70 | - | - | 1.150 | IEC466-1 |
